Flat Bed Die Cutting

Whether your project is small volume or requires millions of parts, our 60-ton Preco flat bed die cutting press has the versatility to produce ultra-tight tolerance die cut parts using both sheet and rollstock, with quick tooling changeover.

The Basics of Flat Bed Die Cutting

Flat bed die cutting is a popular method of die cutting when cutting thicker materials that otherwise cannot be die cut with a rotary die cutting press. Our 60-ton flatbed press uses hydraulics and steel rule tooling to die cut various sheets or rolled goods. Additionally, with our in-line laminator, Pepin Manufacturing can laminate various rolled goods together during the die cutting process. Flat bed die cutting is efficient at manufacturing gaskets, o-rings, seals and abrasive parts.

Ready to start your project?

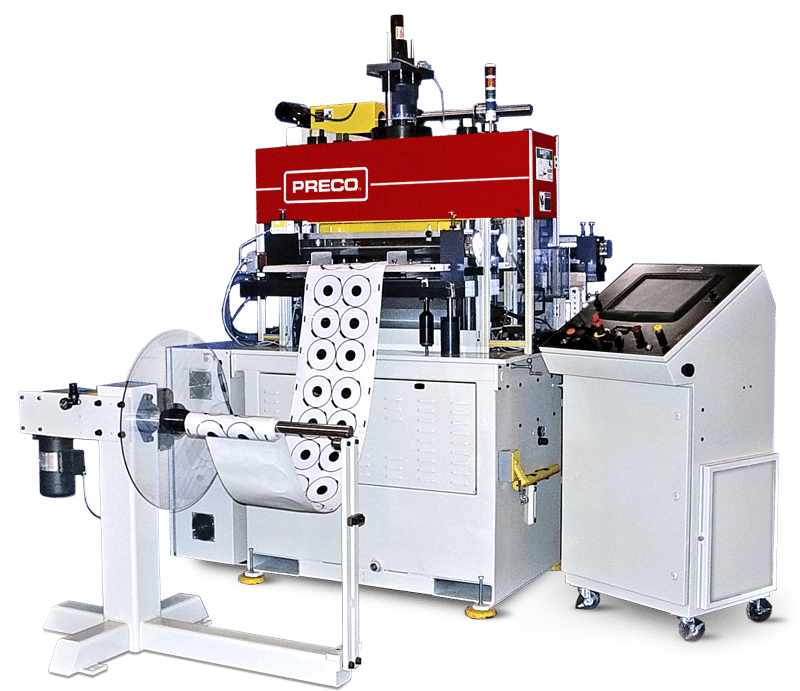

Pepin Manufacturing’s Preco Flat Bed Die Cutting Machine

Pepin’s new flat bed die cutting machine is quicker to set up than rotary die cutting machines, reducing downtime and changeover costs. Working in a stamping motion, our state-of-the-art, 60-ton Preco flat bed die cutting machine is capable of producing hundreds of thousands of parts per day, while providing better dimensional tolerance than rotary die cutting.

With its ability to die cut thicker materials using less expensive steel rule die tooling, flat bed die cutting offers benefits over rotary die cutting.

Want to speak with an in-house manufacturing expert about your project?

Our Flat Bed Die Cutting Machine’s Capabilities Include:

• Can die cut from sheet or rolled goods
• Maximum material width: 24”
• Automatic sheet feeder
• In-Line laminator
• Shingle stack conveyor
• Designed for both short and long-runs
• Handles thicker materials
• Tighter tolerances than other die cutting methods
• Knock-out and stacking capabilities
• CCD vision system- X-Y-Theta registration
